NS301 Semi-Automatic Powder Actuated Fastening Tool

  • NS301 Semi-Automatic Powder Actuated Fastening Tool
  • NS301 Semi-Automatic Powder Actuated Fastening Tool
  • NS301 Semi-Automatic Powder Actuated Fastening Tool
  • NS301 Semi-Automatic Powder Actuated Fastening Tool

NS301 Semi-Automatic Powder Actuated Fastening Tool

    Payment Type: L/C,T/T,D/P
    Terms of Trade: FOB,CFR,CIF
    Min. Order: 50 Piece/Pieces
    Delivery Time: 45 Days
    Packaging: Carton Boxes, in Pallets
    Productivity: 200,000
    Brand: NANSHAN®
    Transportation: Ocean,Land,Air
    Place of Origin: China
    Supply Ability: 200,000 PCS /Year
    Certificate: CE
    Port: Shanghai,Chongqing

Basic Info

Model No.: NS301

Product Description

NS301 Semi-automatic powder-actuated tool, versatile and compact, for single nails

Ns301 Semi Automatic Powder Actuated Fastening ToolNs301 Semi Automatic Powder Actuated Fastening Tool 2

Applications

  • Concrete forming
  • Wood to concrete/steel
  • Electrical fixture to concrete/ steel
  • Conduit clip to concrete
  • Commercial & residential construction
  • Wide range of applications

Technical Parameters


  • Indirect (Piston)
  • Powder Loads: .27 Caliber strip of Powder Loads S1JL
  • Fasteners: YD, HYD, PD, HPD, M8 and HM8
  • Fastener Length: 62 mm maximum
  • Weight: 2.50 kg
  • Length: 340 mm
* This product can be customized for longer nails such as YD76 and PD76

Features

  • Automatic Feeding
  • Easy to use and maintain
  • Rugged Metal Housing
  • 10 shot strip feed with automatic load advance
  • Padded handle to absorb recoil
  • Ideal for general construction applications

NS301 is engineered and designed as a low velocity, semi-automatic .27 caliber tool that can be used to install .300/8mm headed drive pins and 1/4″-20 threaded studs, up to 2-1/2" total length.

This tool is designed for high speed use and repetitive applications throughout the contractors work hours, with direct fastening technology.

Ns301 Semi Automatic Powder Actuated Fastening Tool 5Ns301 Semi Automatic Powder Actuated Fastening Tool 4Ns301 Semi Automatic Powder Actuated Fastening Tool 3

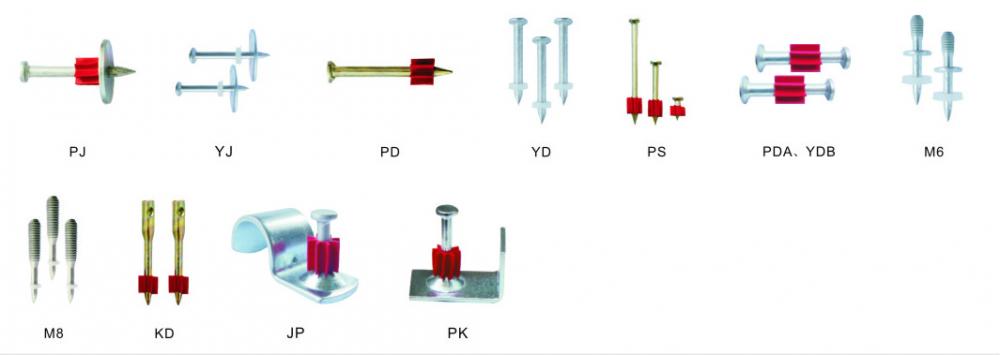

Fasteners / Drive Pins
Drive Pins For Ns301 Semi Automatic Powder Actuated Fastening Tool

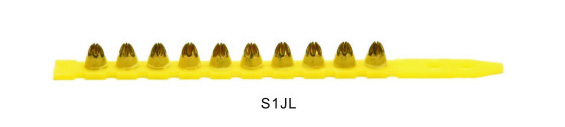

.27 Caliber Strip of Powder Loads
27 Calibers Strip Of Powder Loads For Ns301 Semi Automatic Powder Actuated Fastening Tool

Included With Tool

Safety Glasses, Operators Manual, Spall Guard, Two Wire Cleaning Brushes, Carry Case, extra barrel clip and pawl

Sichuan Nanshan Powder Actuated Fastening System Co., Ltd.



Founded in 1965, Nanshan is the professional manufacturer and R&D center, specializing in providing high quality nail fastening products for concrete, masonry and steel.

Our Production Capability:Our Production Capability:
Power Loads: 1,200,000,000 pcs /Year
Drive Pin: 600,000,000 pcs /Year
GAS Nailer: 100,000 sets /Year
Powder Actuated Tool: 200,000 sets /Year
Solid Propellant Fastening Tool & Ceiling Fastening Tool: 20,000 sets /Year
Captive Bolt Stunner: 20,000 sets /Year


With more than 30 years' development, NANSHAN have become the TOP Brand and Best Seller in China nailing industry.

Nanshan has acquired ISO-9001 quality system certificate and international quality certificates, such as CE. Now we are up to meet the requirements stipulated in American PATMI standard, European CIP standard and EN16264. Nanshan power loads are the ONLY ONE China origin cartridge product that is qualified by the European Safety Standard Test.

Nanshan always pursues high quality products and excellent service. In recent years, we have developed a series of new products, with the Insulation Nail Fastening Technology, Gas Nail Fastening Technology and Integrated Nail Fastening technology.

Nanshan products have been welcomed by worldwide customers. We are exporting our products to more than 30 countries and regions, such as the United States, Europe, Middle East, Central and South America, Russia, Australia, Southeast Asia, North and South of Africa, that makes Nanshan to become the largest exporter of nailing products in China, and the leading company of China's nail fastening equipment.

We welcome customers from all over the world to visit our company and cooperate with Nanshan.
